產品名稱

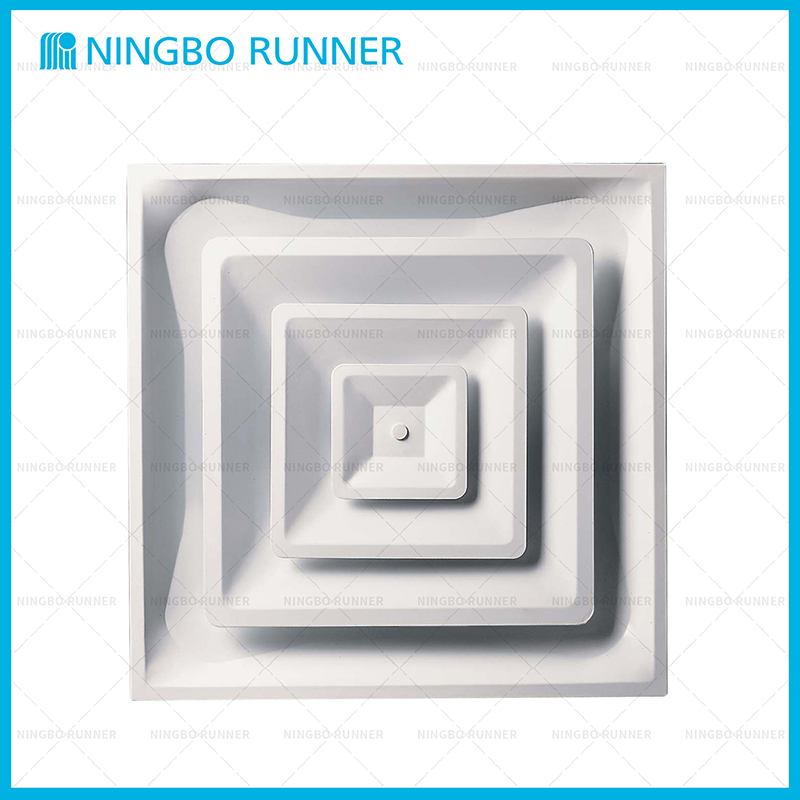

402414CI T-Bar Steel 3-Cone Fixed -Pattern Diffuser with Collar and Insulation
產品型號
402414CI
參數
產品特點
下載
- FunctionFor Air Supply or Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design3-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling ?
- With insulation
- Three-cone fixed core
- Fixed collar 6' to 14'
- 360-degree air diffusion
- Accept model #403101 butterfly damper (6'-14')
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish ?

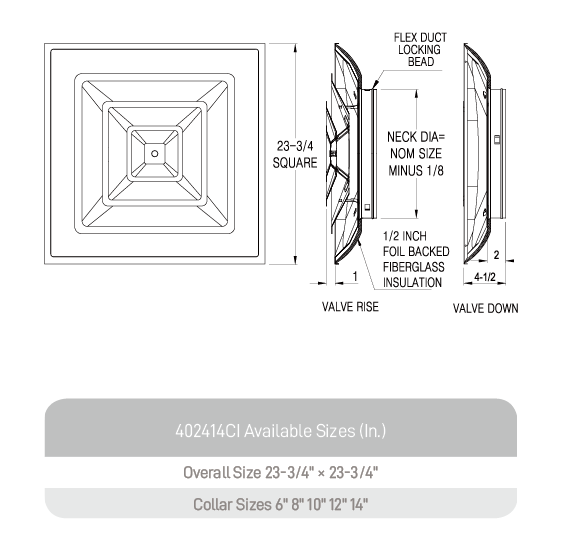

- 402414CI Drawing 下載文件
