產品名稱

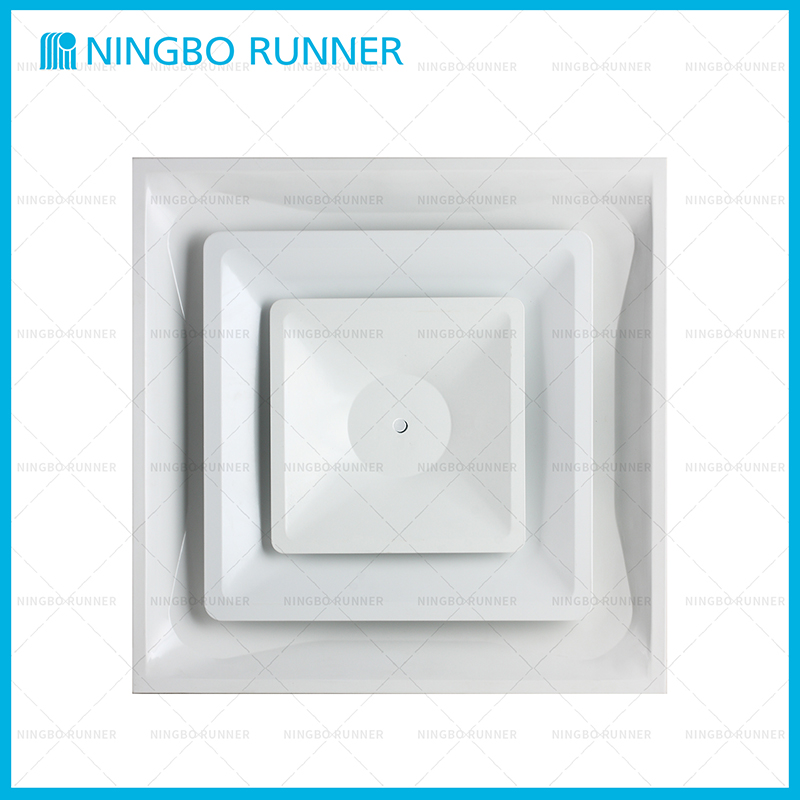

402601I T-Bar 2-Cone Fixed-Pattern Diffuser without Collar, with Insulation
產品型號
402601I
參數
產品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design2-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling ?
- Two-cone fixed core?
- With insulation
- 360-degree air diffusion
- Accept model #403302 snap-in collar ring (6'-14')
- Overall size 23-3/4'×23-3/4' (24'×24' openings)
- White durable finish?
-

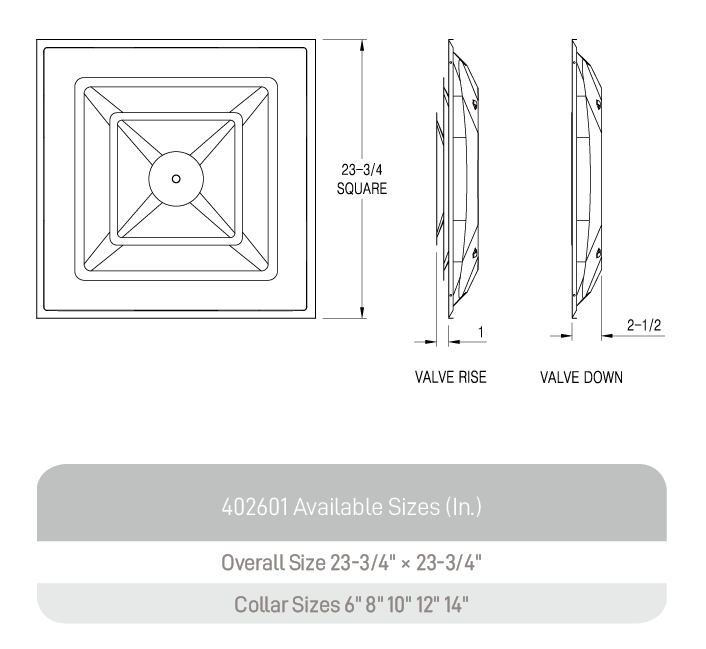

402601I Drawing
