產品名稱
402408ADCWR6 T-Bar Perforated Supply Diffuser with Adjustable Deflectors Collar and R6 Insulation
產品型號
402408ADCWR6
參數
產品特點
下載
- FunctionF
- Surface TreatmentE
- ColorWhite
- DesignPerforated
- MaterialS
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-bar ceiling?
- Perforated faceplate
- Adjustable round deflectors?
- With R6 insulation?
- Formed metal back panel?
- Accept model #403101 butterfly damper (6'-14')
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish?

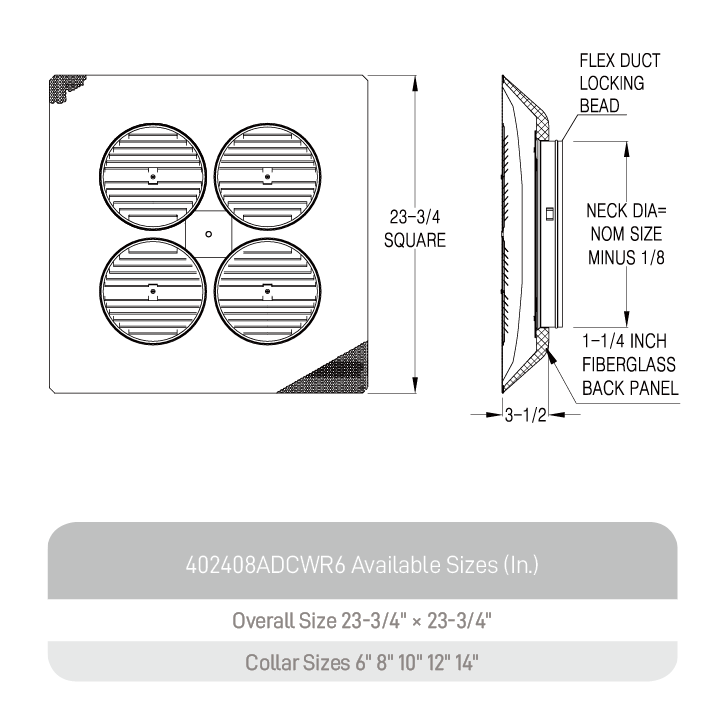

- 402408ADCWR6 Drawing 下載文件
