產品名稱

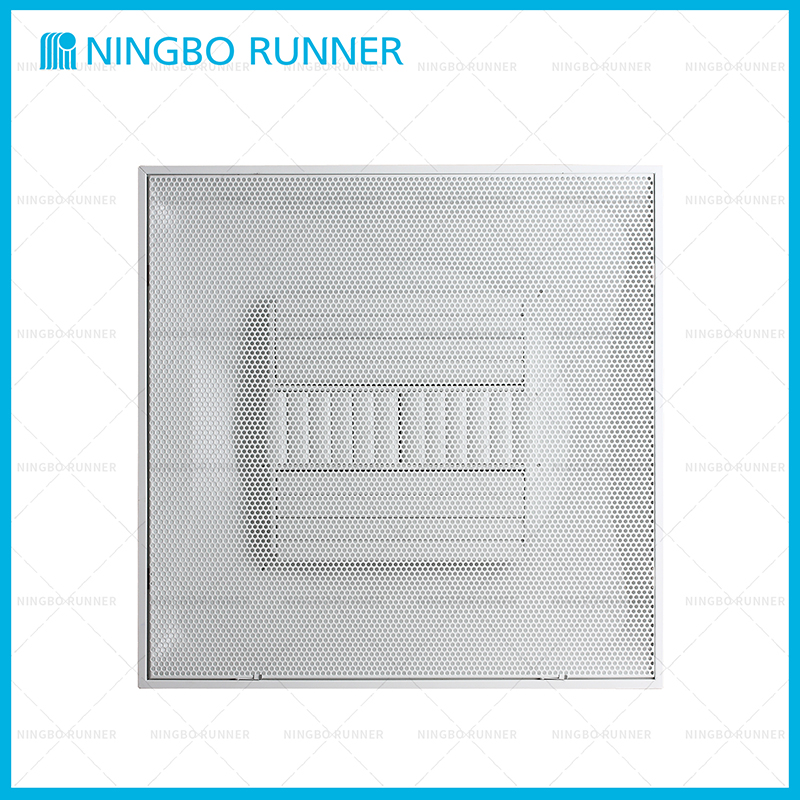

402307C T-Bar Steel Curved Blade Perforated Supply with Collar
產品型號
402307C
參數
產品特點
下載
- FunctionFor Air Supply or Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignCurved
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling ?
- Four-way, perforated faceplate
- Adjustable curved-blade deflectors?
- Removable hinged face for easy air flow adjustment and cleaning?
- Formed metal back panel?
- Fixed collar 6' to 14'
- Accept model #403101 butterfly damper (6'-14')?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish?

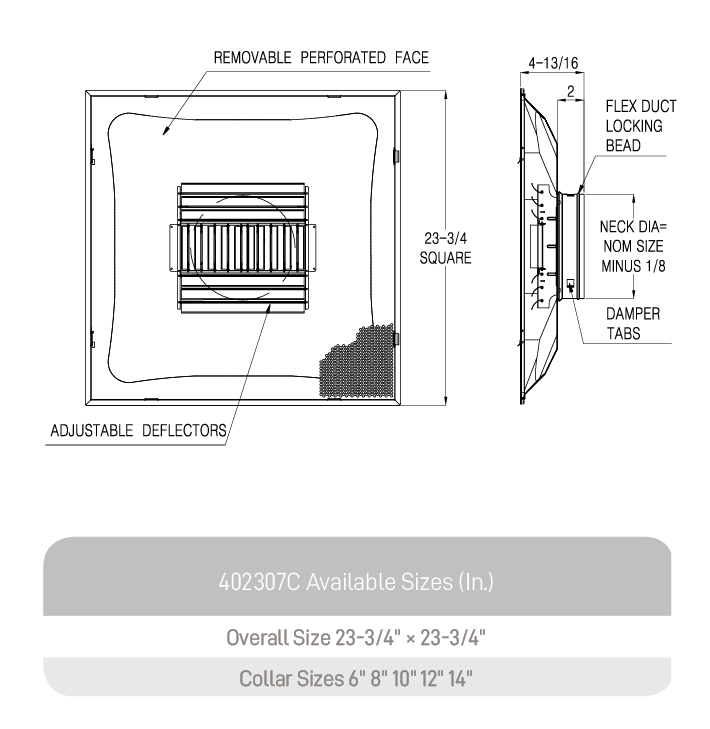

- 402307C Drawing 下載文件
