產(chǎn)品名稱

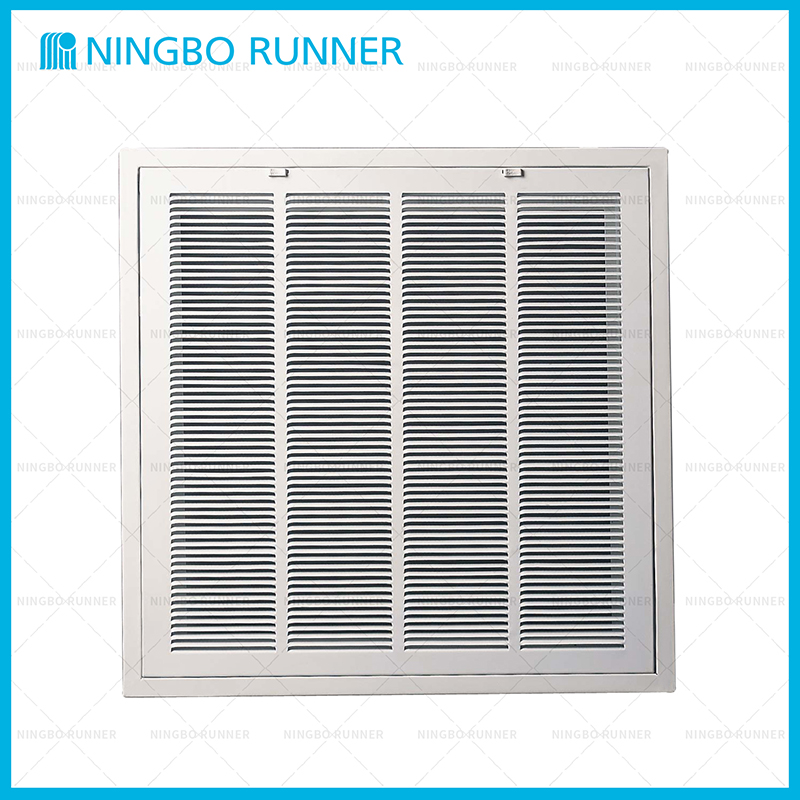

402210R6 T-Bar Steel Lanced Return Filter Grille with R6 Insulation
產(chǎn)品型號
402210R6
參數(shù)
產(chǎn)品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignLanced
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction
- Use for T-Bar ceiling?
- 1/3' spaced fins?
- Lanced faceplate
- Removable hinged face for easy installation and cleaning
- Use nominal 1' thick filters (not included)
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- With R6 insulation
- White durable finish?

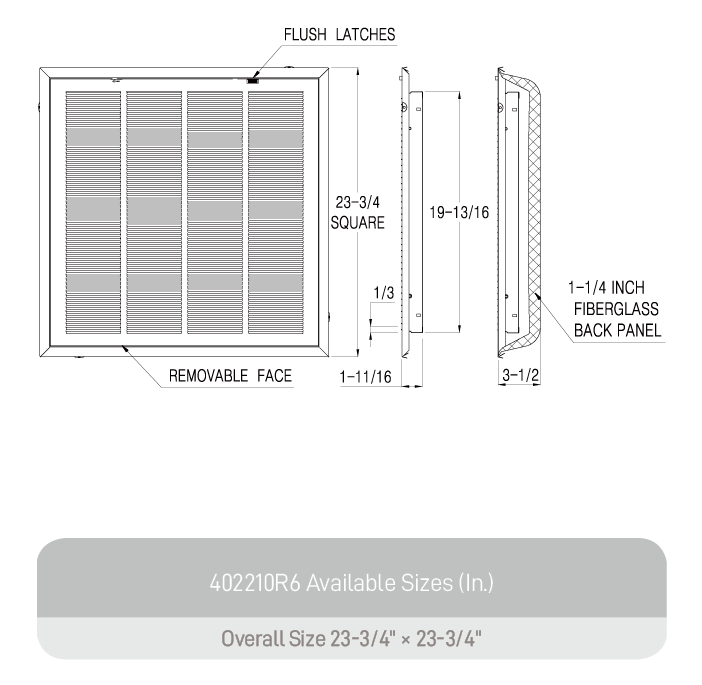

- 402210R6 Drawing 下載文件
