401601 Aluminum Double Deflection Vertical and Horizontal Grille with Damper
產品型號
401601
參數
產品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignVertical and Horizontal Grille
- MaterialAluminum
- Duct Opening SizeWidth 4-48in; Hight 4-48in
- Extruded aluminum construction
- Vertical front bars
- Adjustable individual bars provide vertical and horizontal?
- deflection control
- Opposed-blade damper for volume control
- Available finish: White
-

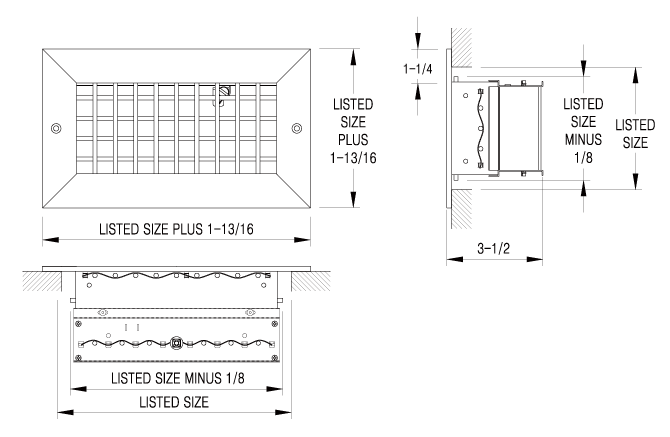

401601 Drawing
